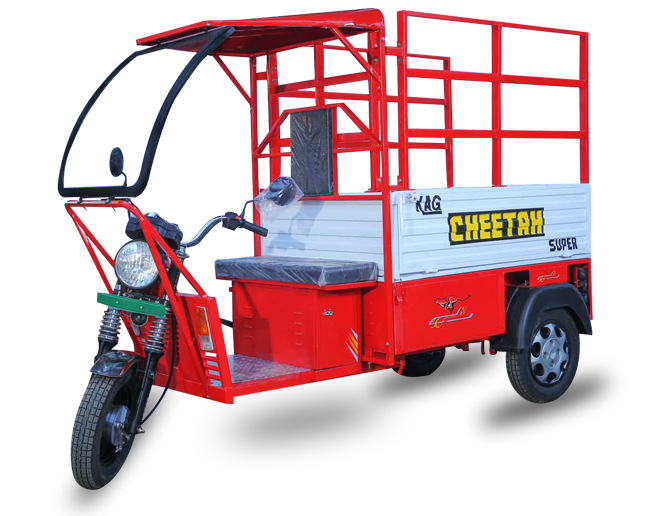

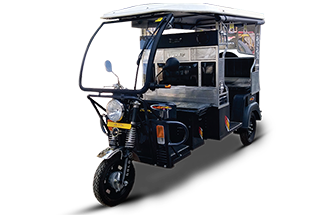

E Rickshaw Manufacturers

Salient Feature
colour red / white
Battery backup 85-95km (After 35 charging cycle)
Charging time 9-10 Hours
Windscreen Laminated glass screen
Warranty Battery-As per manufacture warranty Note - No warranty without battery cards. Motor 8 Controller-6 Months (if there is any manufacturing defect) Charger-12 months (if there is any manufacturing defect)
Warranty chassis 1 year
FREE Accessories steel roof, Tool Kit, First Aid, Manual, Do and Don'ts, Fire Extinguisher, Curtain, stepney cover.
Overall weight 330 kg (Including battery) 210 kg (Excluding battery)
Overall size Length-2720mm, Width-960mm, Height-1360mm
roof material steel roof
Chassis CRC steel
Motor 1000 W (BLDC)
Charger 48V, 15A
power 1900 W
Digital Speedometer Digital Calibrated as per Govt. Standards
speed 25km/H
battery EASTMAN 130 AH
Tyre 3.75x12 (69-b) BIS certified
Brake Mechanical drum brake (Front & Rear)
Front suspension Telescopic hydraulic shocker with spring (29",43mm)
Dual suspension Leaf spring + Rear Shocker 10"
Transmission mode Transaxle
Parking brake yes
Rim. SA 12.5x12 (Special steel)
Extra Accessories Models
VX DX LX SX
STEEL ROOF
WIND SCREEN
CENTRAL LOCKING
REAR SHOCKER
WIPER MOTOR
FOG LIGHT
FULL SIDE FRAME
Features
  • Steel roof with support
  • Bulky storage cabinet for batteries
  • heavy side frame structure for extra loading
  • double chassis frame for extra weight
  • inbuilt strong front protection frame
